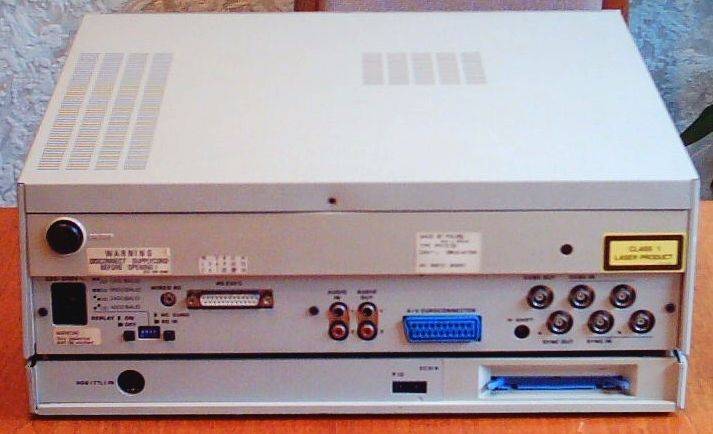

At the back of the LV-ROM player, we can see all manner of connecting sockets. In the top left-hand corner is the on-off button then below this in the middle section we have a mains connector to take a standard kettle lead, a Replay on/off switch, a set of DIP switches to set the baud rate, a remote control infra-red on/off switch, an RS-232 D-type connector, audio in and audio out sockets, a SCART socket and a set of RGB and vertical and horizontal hold monitor connections.

Underneath this is the additional section only found on the Domesday VP-415 model. It has an RGB in socket to the left, a set of ID DIP-switches towards the middle and a SCSI connector to the right.
