Good LV-ROM Player
Good LV-ROM Player

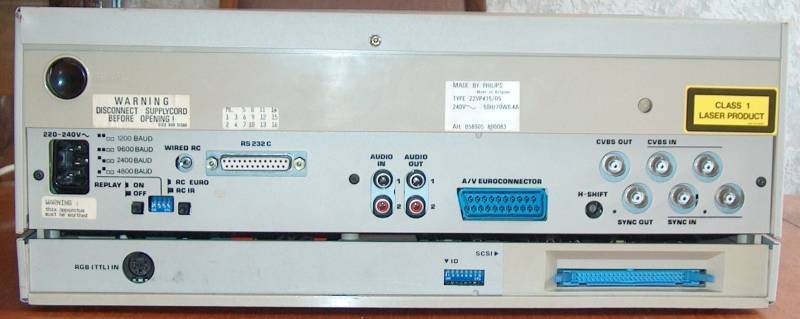

The extra bottom panel on the VP-415 can be seen more clearly from this picture of the back. There are many connectors and buttons on the back, from the power switch at the top left to the mains cable socket underneath, then Replay on/off button, DIP switches for serial baud rate, remote control Infra Red or Wired select button, wired remote control socket, serial port, audio in and out connectors, SCART socket, horizontal shift control, and composite video and Sync inputs and outputs.
On the Domesday panel at the bottom is the BBC RGB in socket for connecting the BBC RGB out to the laserdisc player, SCSI ID DIP switches, which must be set to zero, and 50-way SCSI connector.
