Econet Hub Layouts

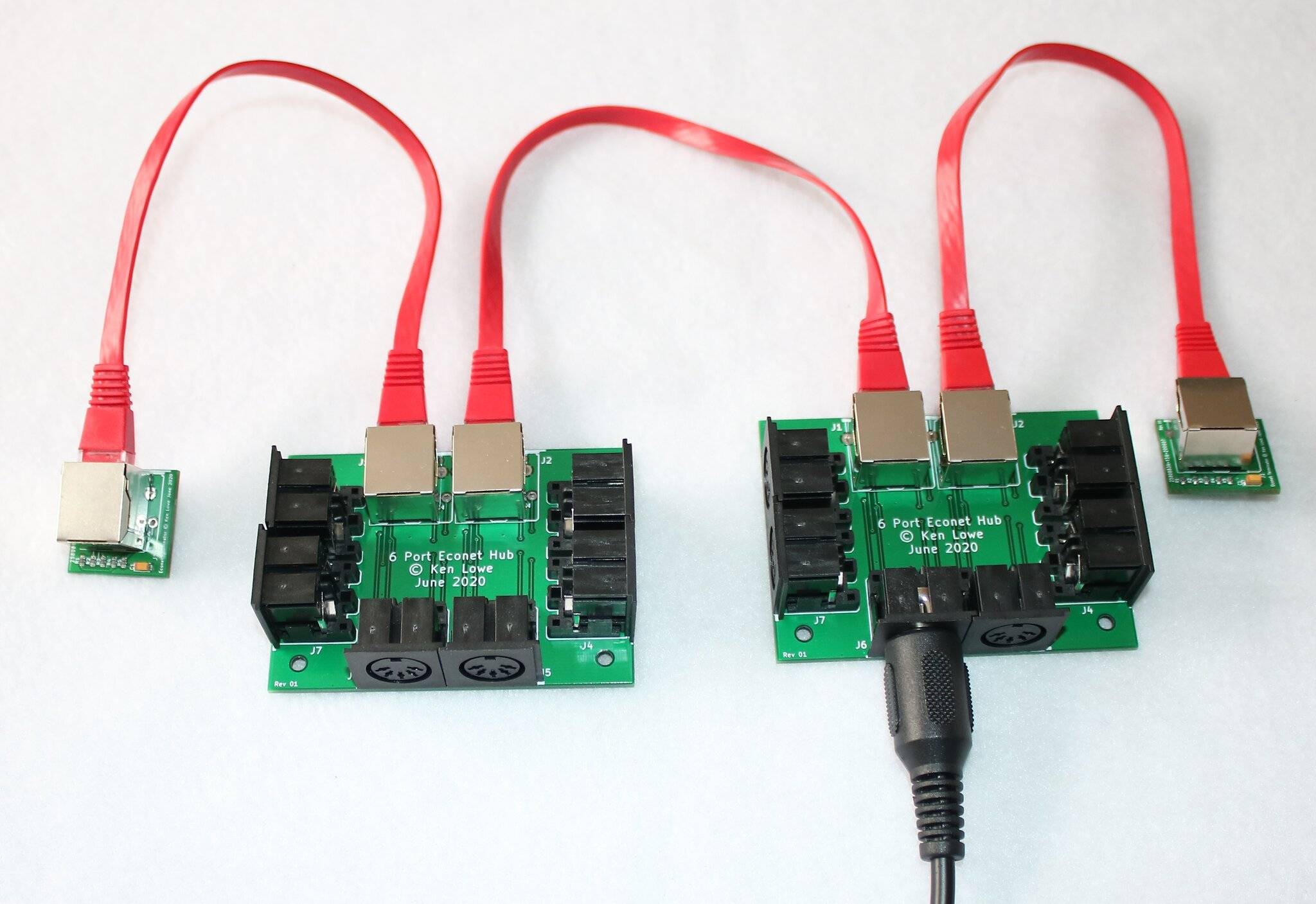

This is a dual Hub Econet where RJ45 sockets are used as the expansion ports. The two Hubs are linked together with an RJ45 patch cable connected the inner expansion sockets. The outer expansion sockets are connected to terminators. The Clock is connected to a DIN socket.
