Econet Hub Layouts

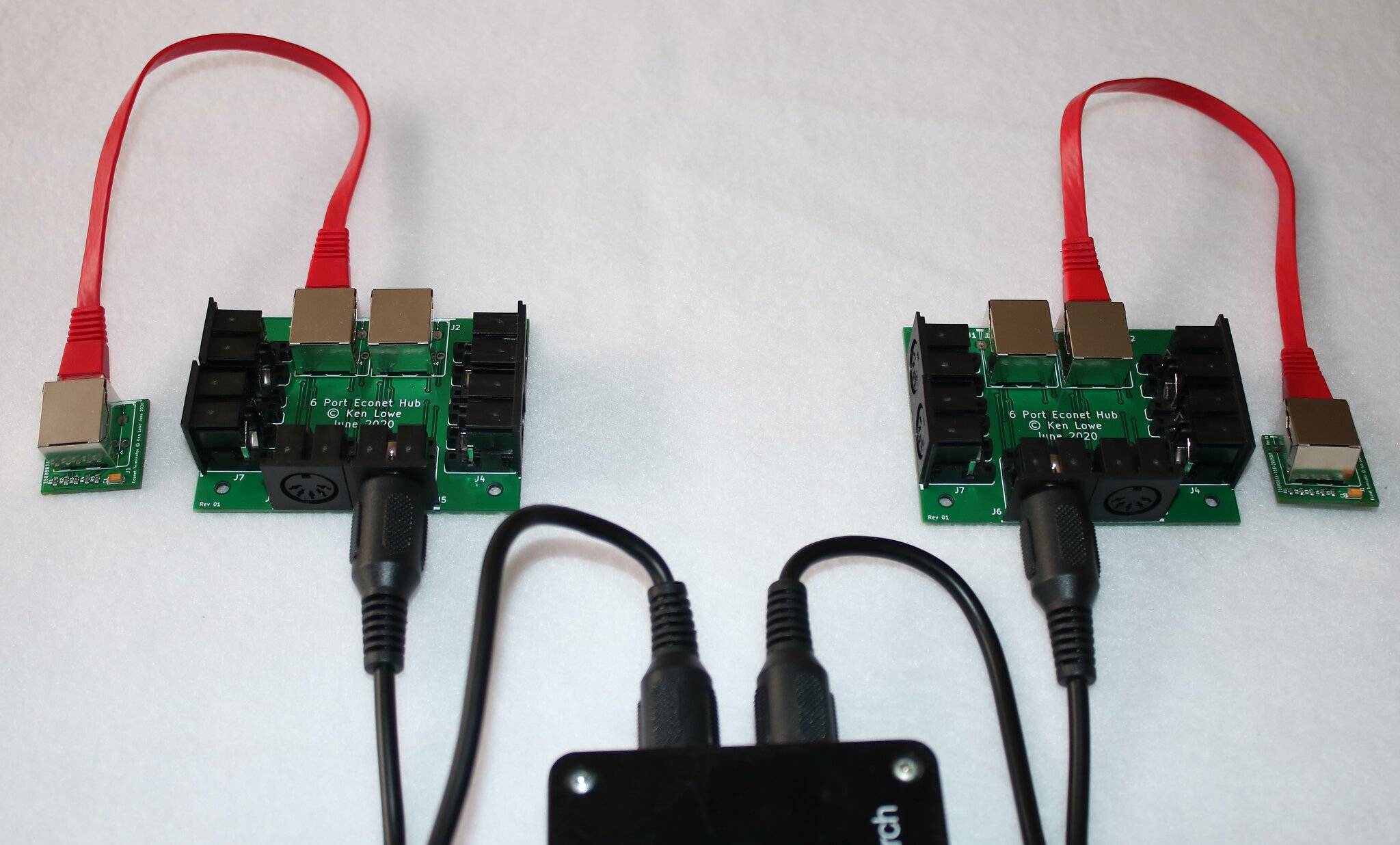

This is an alternative dual Hub network with RJ45 expansion sockets. In this case, the Clock is used to connect the two Hubs togther and the network is terminated by connecting Terminators to the two outermost RJ45 expansion ports; the inner ports are not used as the two Hubs are already linked via the Clock.
