Econet Hub Layouts

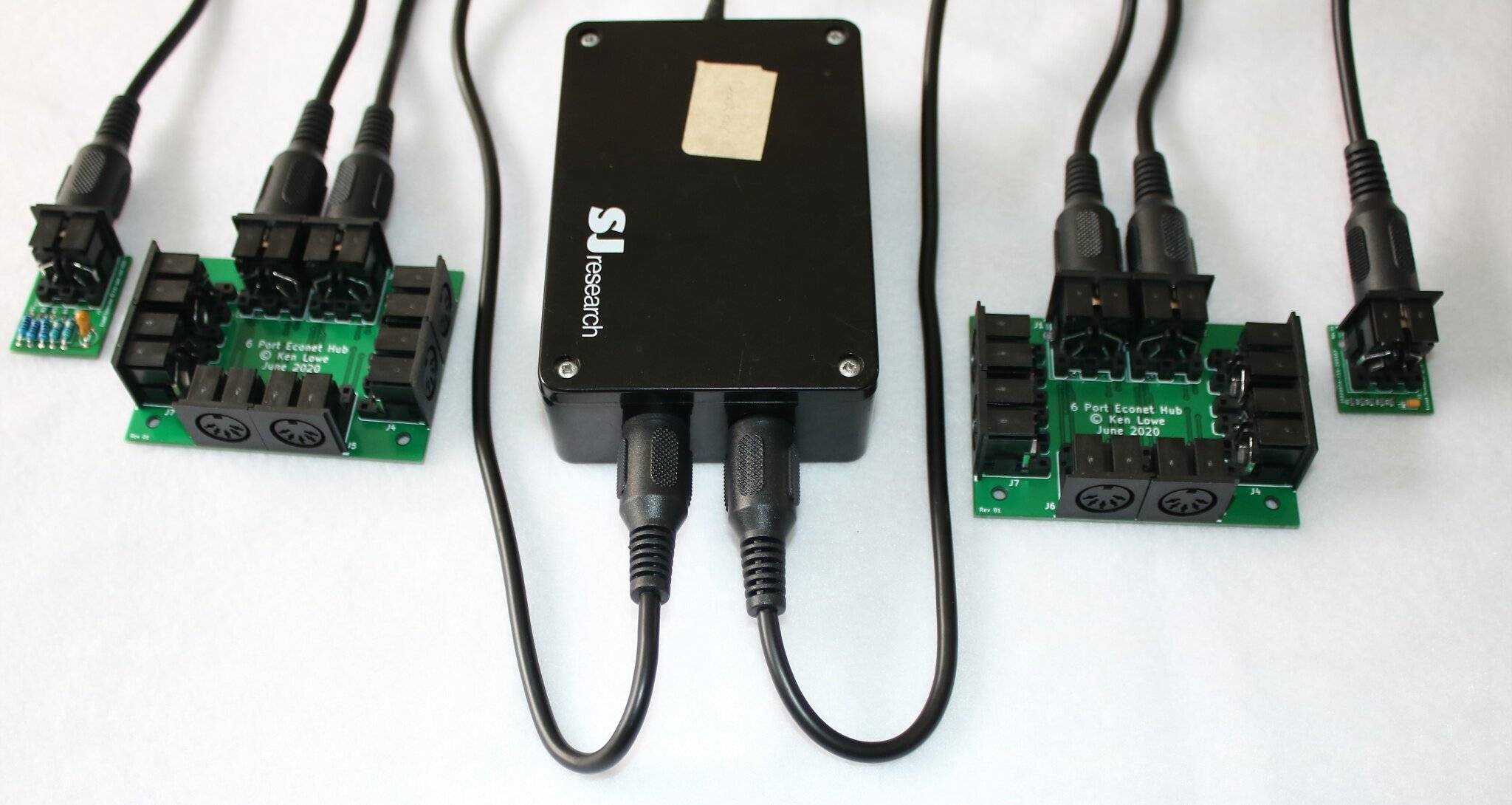

This is a dual Hub network. Two Hubs are connected together using the Clock. The inner two expansion sockets of the four provided by two Hubs are used to attach the Clock, and the outer two expansion sockets are connected to Terminators. Up to 12 Econet stations can be connected to this arrangement.
