NCST Input Output Adaptor

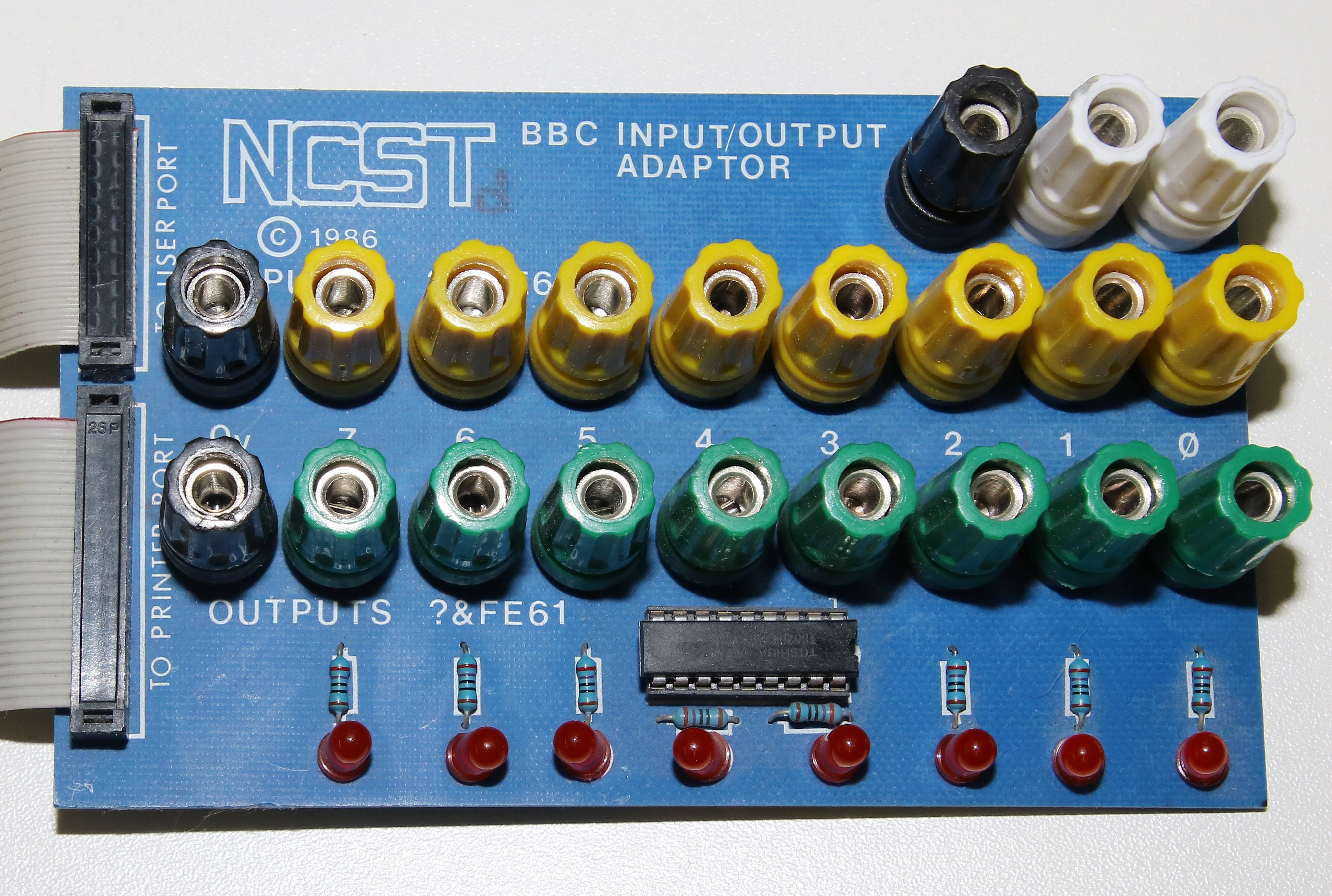

That's it. Two ribbon cables go to the BBC micro's user and printer ports, and then there are screw terminals to allow something or other - I guess that's up to the user - to be connected, I think to individual control lines on the 6522, which runs the printer and user ports.

Obligatory LEDs will give some sort of visual feedback.
