SJ Research
Socket Boxes

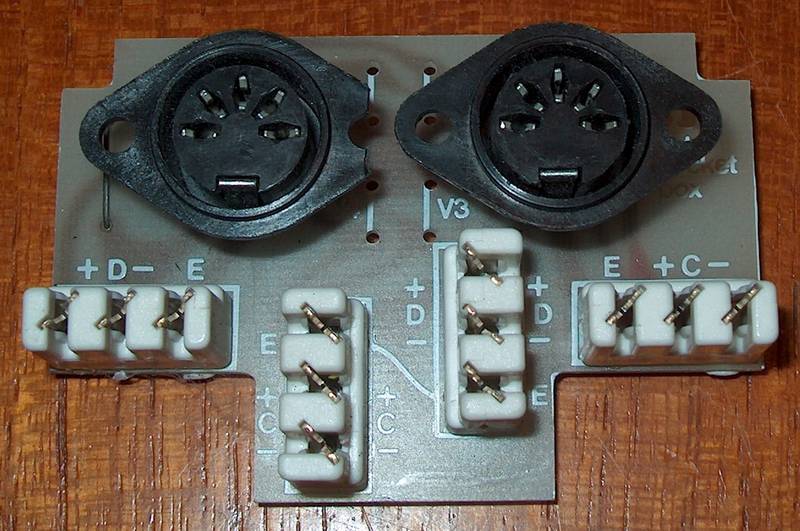

Here, the circuit is slightly different as there are two sets of blade connectors. This allows the network cable to be cut at the socket box if required, in which case one end of the cable connects to the left-hand set and the other end to the right hand set. If a continuous cable is used, the two inner-most rows of blade connectors are used.
