Acorn
Winchester
Disc

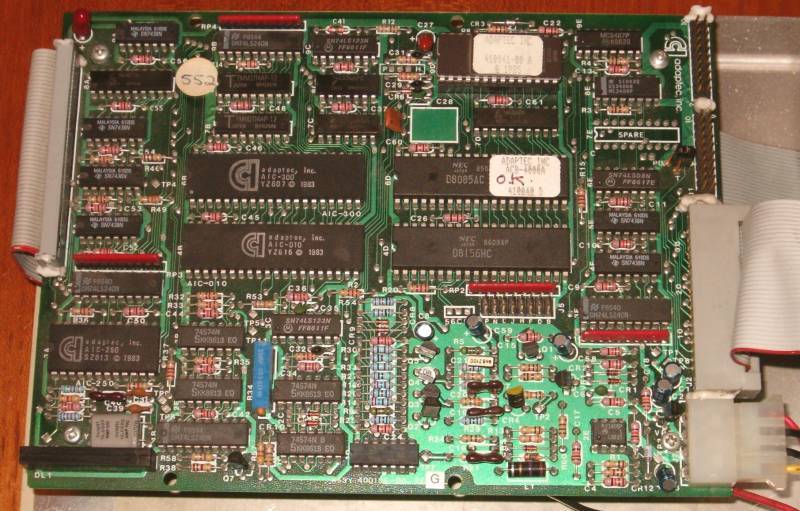

This is an Adaptec ACB4000 Winchester disc controller board. Early hard discs had separate controller boards like this whereas nowadays the disc controller circuitry is built in.
The 50-way connection on the left goes to the host adapter board underneath. The disc itself would be connected up to the sockets on the right-hand side of the board. There is a 34-way connector just like on a 5¼" floppy disc drive but there is also a 20-way connector. There is a second 20-way connector as this Adaptec board can support two Winchester discs.
The type of discs required for the Adaptec board are the old ST506 type which have the 34-way and 20-way connections. They can be difficult to get hold of nowadays which is a bit of a shame since the disc is missing from this unit.
