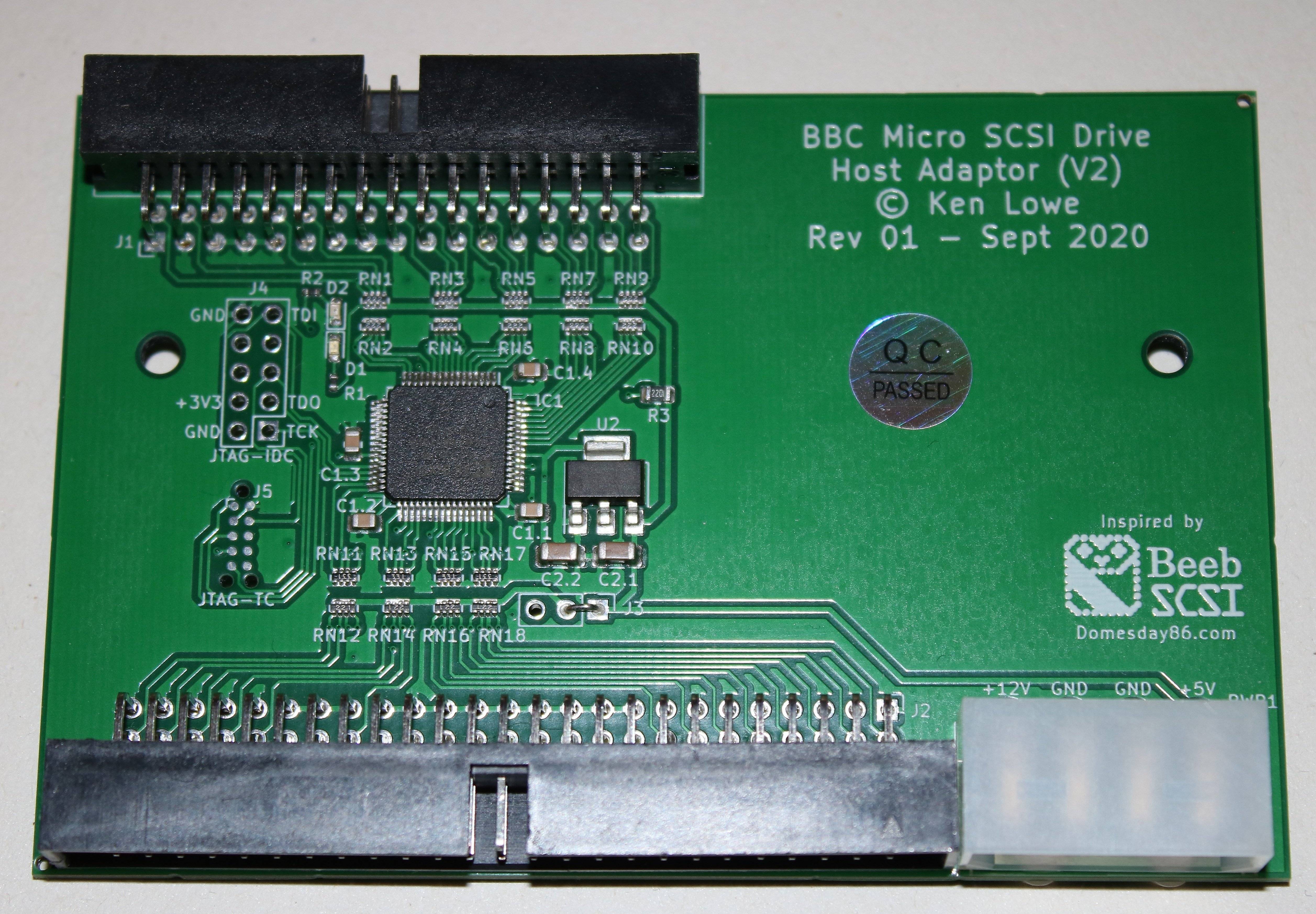

Here's the board in close up. It's all surface-mount what-not, with 34-way header at the top end to go to the 1MHz bus and 50-way at the bottom for a SCSI drive.
