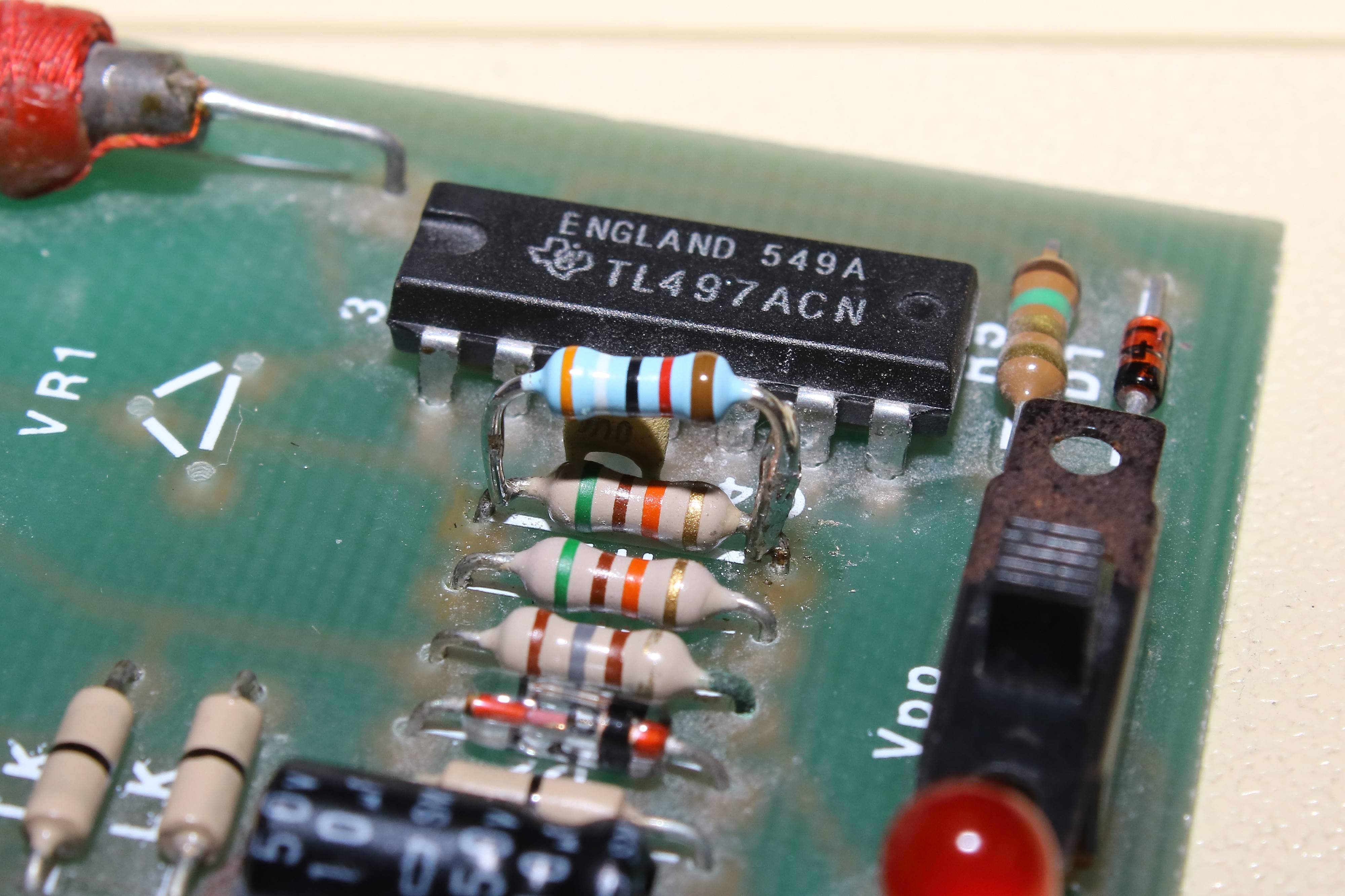

I have made a modification here, by adding a resistor to this existing one, to bring down the programming voltage. The UviPROM programmes at 21V, but more modern EPROMs are 12.5 or 12.75V.
